Model with 147kW and Euro 4 Norm
Incl. certificate of conformity
From year : 2004 -

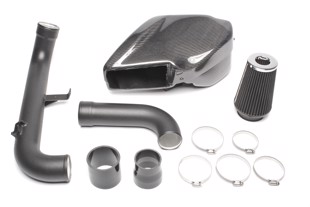

Kit includes:
1 x airbox
1 x conical filter with adapter ring (70mm Ø)
2 x connection pipe (connections each side 70mm or76mm Ø)
With connection for air mass meter (MAP sensor)
1 x 76mm diameter silicone connector
1 x 70mm to 63mm silicone Reducer
4 x hose clamps 70-90mm Ø
1 x hose clamp 50-70mm Ø
1 x mounting kit for holders

Model with 1.8l TFSI / 2.0L TSI / TFSI engine
From year: 2011 - 2014

Kit includes:
TA Technix intake pipe
1 x suction pipe aluminized (with 70mm Ø connection from the OEM exhaust manifold / turbocharger
mass air flow sensor on 76mm), silikonereducer blue (70mm to 63mm Ø)
1 x tube elbow (76mm diameter aluminized silicone tube with two 76mm adapter)
4 x hose clamps (70-90mm Ø)
2 x hose clamps (60-80mm Ø)
TA Technix heat shield coating: black
TA Technix sport air filter Ø90mm
Universal filter round-conical Filter Ø 155mm/120mm/ length 125mm with clamp
+ 3 adapter rubber rings with inner flange diameter 60mm, 70mm, 85mm
TA Technix adapter ring to Ø 76mm

Models with 1.8l TFSI / 2.0l TSI / TFSI engines
From year : 2009 -

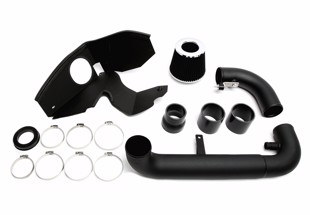

Kit includes:
1 x airbox
1 x conical filter with adapter ring (70mm Ø)
2 x connection pipes
(with 70mm Ø connection from the exhaust manifold / exhaust turbo
mass air flow sensor to 76mm)
2 x 76mm Ø silicone connector
1 x 70mm to 63mm silicone reducer
4 x hose clamps 70-90mm Ø
1 x hose clamp 65-90mm Ø
1 x hose clamp 60-80mm Ø
1 x hose clamp 50-70mm Ø
1 x mounting kit for holders

With 1.8TFSI / 2.0TSI / 2.0TFSI engine
Incl. filter + add-on material
With technical paper
Motorcode: CHH, CJX
169kW , 210+228kW model

TA Technix short turbo intake manifold for all V6 R32 engines / turbo conversions for R32 Turbo conversion in the VW Golf I / II / III Throttle flange without bore, connection dimension: Ø 80mm, pressure connections available
