TA-Technix Air Intake - VW Scirocco

1.4l TFSI engine
With 140hp / 160hp / 170hp
From year : 2006 -

Kit includes:
1 x suction pipe aluminized (70mm Ø)
blue silicone hose (78mm length)
2 x hose clamp (60mm to 80mm Ø)
TA Technix heat shield coating: black
TA Technix sport air filter Ø90mm
Universal filter round-conical Filter Ø 155mm/120mm/ length 125mm with clamp
+ 3 adapter rubber rings with inner flange diameter 60mm, 70mm, 85mm

Model with 1.8l TFSI / 2.0L TSI / TFSI engine
From year: 2011 - 2014

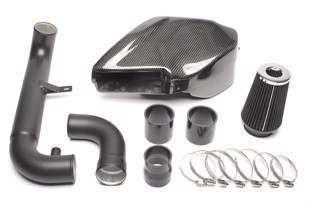

Kit includes:
TA Technix intake pipe
1 x suction pipe aluminized (with 70mm Ø connection from the OEM exhaust manifold / turbocharger
mass air flow sensor on 76mm), silikonereducer blue (70mm to 63mm Ø)
1 x tube elbow (76mm diameter aluminized silicone tube with two 76mm adapter)
4 x hose clamps (70-90mm Ø)
2 x hose clamps (60-80mm Ø)
TA Technix heat shield coating: black
TA Technix sport air filter Ø90mm
Universal filter round-conical Filter Ø 155mm/120mm/ length 125mm with clamp
+ 3 adapter rubber rings with inner flange diameter 60mm, 70mm, 85mm
TA Technix adapter ring to Ø 76mm

Models with 1.8l TFSI / 2.0l TSI / TFSI engines
From year : 2009 -

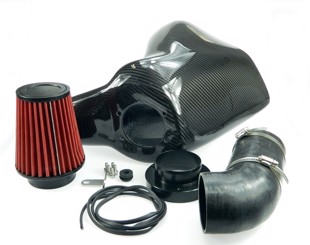

Kit includes:
1 x airbox
1 x conical filter with adapter ring (70mm Ø)
2 x connection pipes
(with 70mm Ø connection from the exhaust manifold / exhaust turbo
mass air flow sensor to 76mm)
2 x 76mm Ø silicone connector
1 x 70mm to 63mm silicone reducer
4 x hose clamps 70-90mm Ø
1 x hose clamp 65-90mm Ø
1 x hose clamp 60-80mm Ø
1 x hose clamp 50-70mm Ø

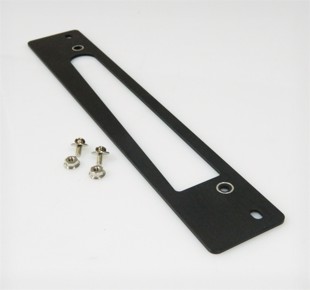

1 x mounting kit for holders

For mounting 114VW004 and 114VW005
From year : 2003 -

Motor: CCZB
From year : 2009-

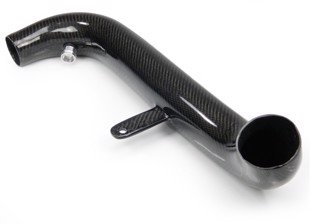

Matching extension for airbox / air filter system 114VW005 Audi / VW
Connection between turbocharger Inlet and air mass meter
2.0TFSI mit 132kW / 147kW / 155kW / 173kW
From year : 2004 - 2015
